Expanded metal filters are made from flattened, regular or corrugated expanded aluminum, galvanized steel or stainless steel.

Air Filter Manufacturer use a lot of thin gauge expanded metal mesh in lamination process. We offer galvanised steel material 0.3mm thick flattened and levelled in various sizes.

Diamond Expanded Metal and micro opening expanded metal can be used as materials for filter sheets. Expanded metal filter is manufactured in galvanized steel expanded sheets, commonly used in the manufacture of the air filters, primarily for the automotive industry, and also in bells extraction for kitchens.

Expanded metal filter has glossy finish, low weight and resistance to oxidation. All these features make expanded metal filter an alternative to other metal filters.

Material: GALVANIZED EXPANDED METAL MESH
Type: GI
Properties: Minimized spangle, Skinpass, Chromated, Unoiled.
Spec after flattening: Thickness: 0.19T Strand width: 0.56mm Mesh opening size: 20*32mm

Our client need a big diamond slit to reduce the static pressure of units, at the same time increase the air flow and cooling capacity.

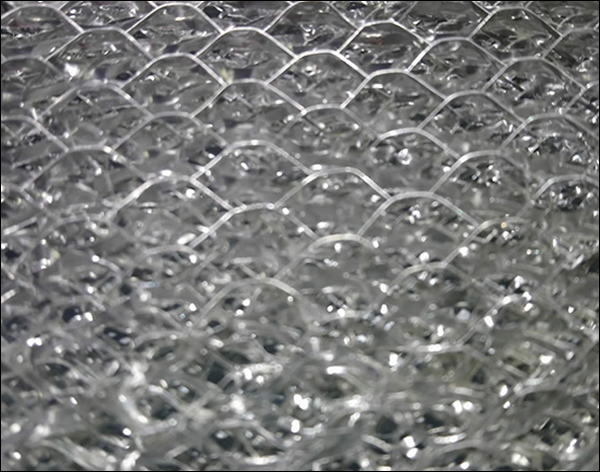

so, we customized：aluminum media filter mesh

Specification:
Thickness: 5/8”
Material: Aluminum media (mesh)
Layer: whatever available standard layers
Size: roll or sheet

We customized expanded wire mesh filter for our customers in the world:

Fine Mesh Aluminum Expanded Sheet for Air-conditioning Filter, dimensions of the expanded area are: LWD = 2mm (0.787”), SWD = 1.5mm (0.06”), Wire Diam. 0.5mm (0.02”)"

Aluminum Hexagonal Expanded Metal for Filter Mesh

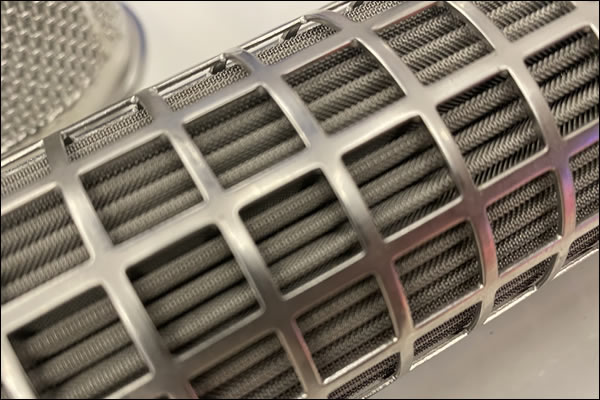

We supply for corrosion-resistant expanded metal support grids to use as a backing for pleated air filters (epoxy/resin coated expanded metal for pleats backing). Self-indicating filter for removal of toxic chemicals and odors from air.

Resin Coated Expanded Metal Mesh For Pleated Filter

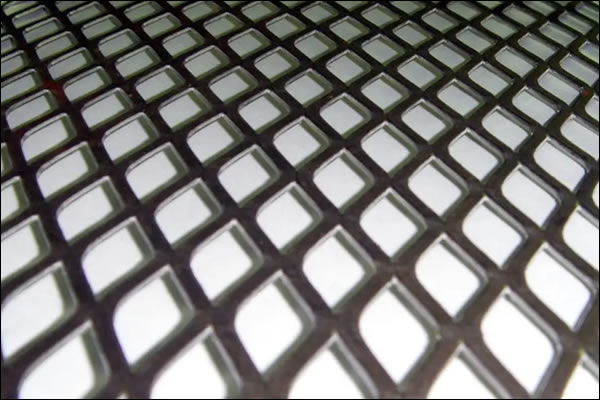

Titanium Expanded Mesh For Impregnated Titanium Filter Membrane

Expanded Titanium Sheets
Thickness; 0.5~1mm
Pore size: 0.5~1mm
Materials: all titanium metal
Size: 300mm x 300mm

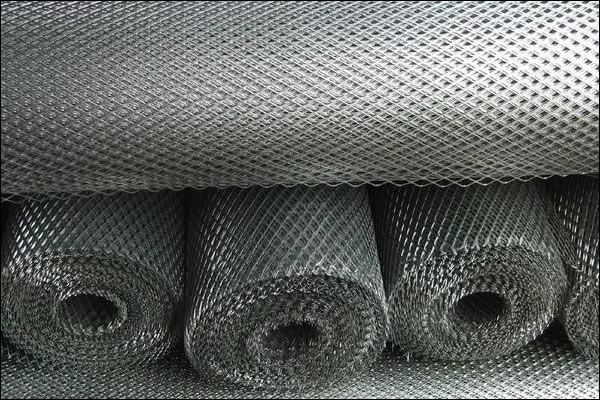

Aluminium Foil Expanded Metal

Aluminium Filter Media (24.5” X 50’ X 5/8” fits roll, 9 ply)
Aluminium Filter Media (40” X 50’ X 5/8” fits roll, 9 ply)
Aluminium Filter Media (40” X 64” X 5/8” fits)

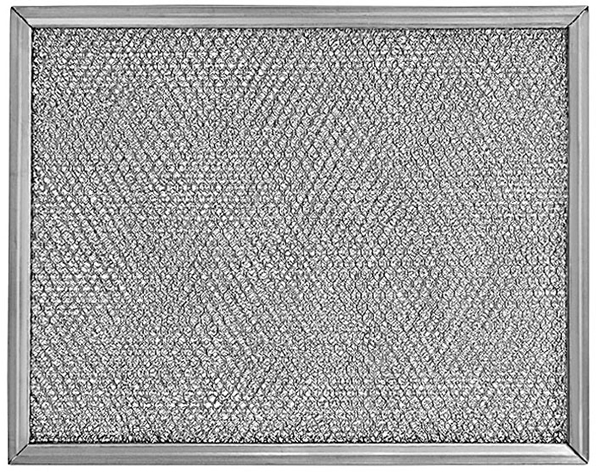

Knitted Expanded Wire Mesh For Air Filters

1/2 inch knitted mesh for air filters - 24.5 " inches x 50"feet rolls .

Expanded Metal Wire Mesh For Filter

Material: galvanized steel plate
Diamond Mesh mm: 16 x 8,5
Strand Width-Diamond mm: width 1.35, metal thickness 0.5
Width x Length (one roll): 1m x 50m
Quantity: rolls

Expanded Mesh For Lamination On Filter Media
SWD=.40 X LWD=.70 Bond=.054,strand width=.118,finish thickness=.025-.030,carbon,slit width=25.94 steel galvanized for green high performance air filter

Expanded Wire Mesh For Making Filter
The mesh requires to produce following diamond pattern
TYPE -1
SWD – 8mm.
LWD – 16mm.
Strand width – 1.25mm.
TYPE – 2
SWD – 2.5mm.
LWD – 6mm.
Strand width – 0.8mm

Micron opening expanded metal mesh for hydraulic filter on the catridge valve. hole size of 100~200 micron and stainless steel. it should be use the perforated, expanded or etching mesh.
