Expanded metal material is made of low carbon steel plate, stainless steel sheet plate, galvanized steel sheet plate, aluminum sheet and other metal steel sheet. Expanded metal mesh can be supplied in different openings, typically standard diamond shape; heavy type Tortoise-shaped or hexagonal shape; flattened diamond or hexagonal shape; and some special shapes or designs.

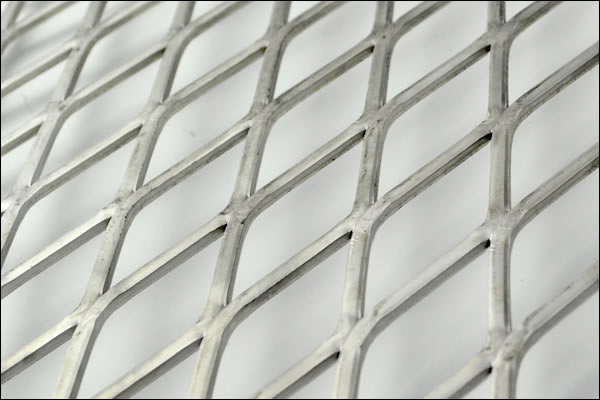

Typically Standard Diamond Shape

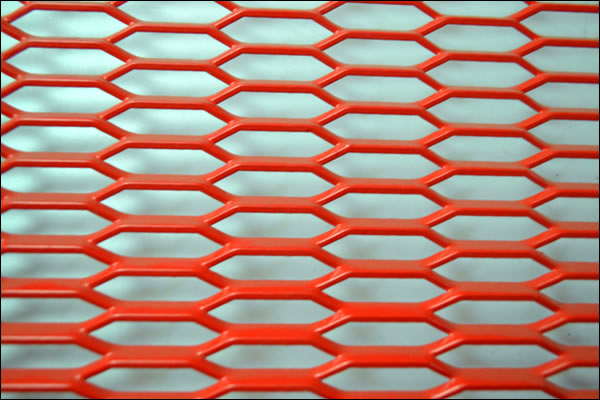

Flattened Diamond Or Hexagonal Shape

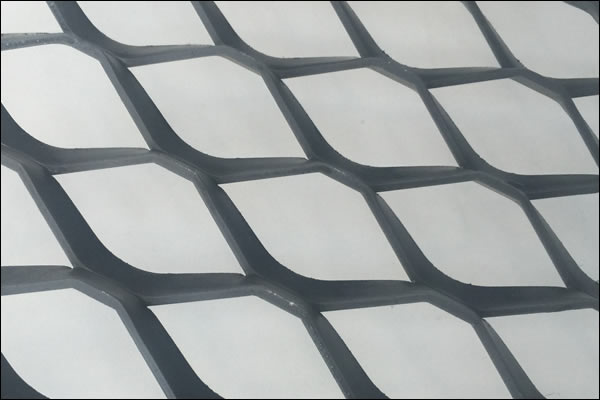

Heavy Type Tortoise-shaped Or Hexagonal Shape

There are many types of holes, including: rectangular holes, square holes, diamond holes, round holes, hexagonal holes, cross holes, triangular holes, long round holes, long waist holes, plum blossom holes, fish scale holes, pattern holes, five-pointed stars Shaped holes, irregular holes, drum holes, etc.

Flat surface, no burr, high precision CNC punching, small error, good quality.

Standard Diamond:
Rhombic Shape is the standard expanded metal products, also named diamond shaped. Can be made from a wide range of metal materials.

Heavy Type Hexagon Shape:
Also known as Tortoise-shaped expanded metal mesh. A kind of heavy-type expanded metal, reinforced compared with the regular diamond shaped expanded sheets.

Flattened:
This kind of expanded mesh finds similar application as perforated metals as fences, construction or building decoration.

According to the requirements, it can be cut into plates or sheets, and further processing such as bending and gripping.

Main patterns illustration as follow:

Pattern Shown	Pattern Designation	LWD inches (mm)	SWD inches (mm)	Orig. Mat'l Thickness inches (mm)	Strand Width inches (mm)	Openings per sq. in.
	500	.405 - .506" (10.25 - 12.75)	.143 - .279" (3.6 - 7.1)	.003 - .04" (.075 - 1)	.007- .07" (.175 - 1.775)	15-22
	275	.215 - .289" (5.4 - 7.4)	.107 - .200" (2.7 - 5.1)	.003 - .035" (.075 - .9)	.005- .055" (.125 - 1.4)	33-77
	190	.180 - .190" (4.5 -4.8)	.056 -.143" (1.4 - 3.6)	.002 - .030" (.05 - .75)	.005- .045" (.125 - 1.1)	79-166
	125	.112 - .160" (3.0 - 4.06)	.055 -.115" (1.4 - 2.92)	.002 - .026" (.05 - .7)	.004- .04" (.1 - 1.10)	114-253
	100	.093 - .112" (2.4 - 2.8)	.038 -.091" (.97 - 2.3)	.002 - .025" (.05 - .61)	.005- .026" (.125 - .66)	253-353
	077	.075 - .080" (1.91 - 2.03)	.032 -.053" (0.82 - 1.35)	.001 - .018" (.025 - .46)	.004 - .020" (.1 - .51)	493-780
	050	.050 - 06" (1.27 - 1.5)	.021 -.041" (0.53 - 1.04)	.001 - .015" (.025 - .381)	.004 - .015" (.1 - .381)	809-1814
	031	.03 - .04" (0.78 - 1.02)	.021 -.029" (0.53 - 0.74)	.001 - .005" (.025 - .127)	.004 - .012" (.1 - .31)	1789-2942
	020	.020" (0.51)	.011 -.014" (0.28 - 0.36)	.001 - .002" (.025 - .050)	.004 - .006" (.1 - .152)	8500-11000
