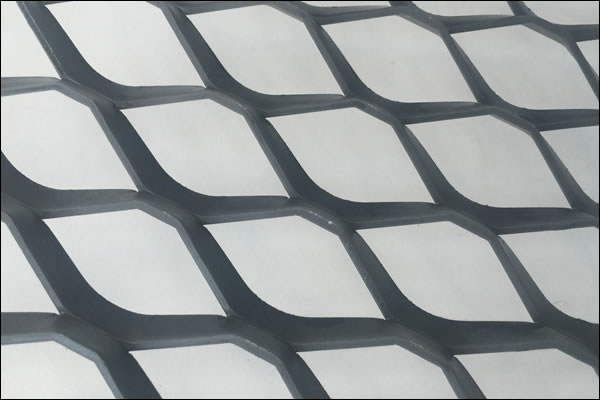

Carbon Steel Expanded Metal Mesh, Zincro Material / G.I

Expanded carbon steel is the most economic expanded mesh among the metal. Use: expanded, perforated and square wire mesh sheet (Galvanized , Zincro , SS304, SS316 etc.) as per our application for air filter cartridges. Galvanized expanded metal is a sheet product that has been slit and stretched to a wide array of diamond shaped openings.

Materials: Galvanized carbon steel.
Variety: Small, medium and heavy type expanded metal mesh.
Opening in the shape of diamond, hexagonal or special shape.

Galvanized Expanded Metal Specifications:
12.5 x 5mm x 0.5mm x 0.5mm x 0.5m x 30m
Expanded metal sheet 8ft x 4ft ( 1250 x 2500 x 0.8mm thk) in straighten form.

Expanded Metal Fencing With Galvanized Steel Mesh Panels
1/2" #13, 5' w x 8' h, standard raised panels
1/2" #13, 5' w x 10' h, standard raised panels
3/4" #9, 5' w x 8' h, standard raised panels
3/4" #9, 5' w x 10' h, standard raised panels
1/2" #13, 5' w x 8' h, flattened panels
3/4" #13, 5' w x 8' h, flattened panels
3/4" #13, 5' w x 10' h, flattened panels
1/2" #13, 5' w x 10' h, flattened panels

Expanded Metal Mesh, Panel 6 X 1.5m, Steel
Ref. 2091 – 50.8x22.58mm
Thickness: 2.5mm
Finishing Treatment: hot dip galvanized

Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded carbon steel can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.

Standard Sizes:
Long way of mesh: TB: 12.5-200mm
Short way of mesh: 5-80mm
Thickness: 0.5-8mm
Sheet length from 600-4000mm and sheet width from 600-2000mm

Specification of Expanded Metal Mesh
Sheet Thickness	Opening in Width mm	Opening in Length mm	Stem	Roll Width mm	Roll Length mm	Weight kg/m2
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26

Expanded Metal Mesh for Exterior Wall, Hot Dipped Flattened Expanded Metal

Expanded metal mesh used for building floor mesh

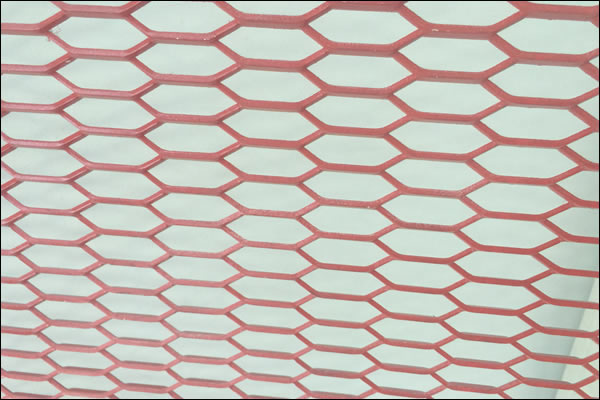

Spray paint expanded metal mesh, decorative Hexagonal anti-rust paint expanded metal mesh
