Stainless Steel Flattened Expanded Metal Mesh Flattened to Smooth,Titanium and Aluminium

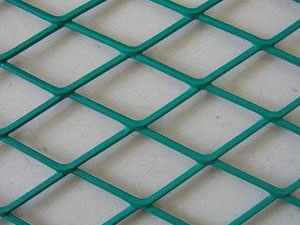

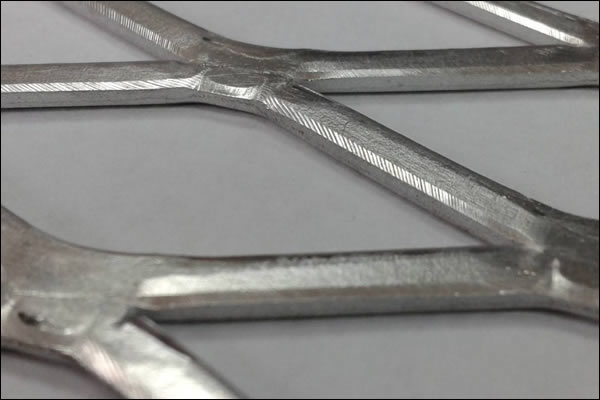

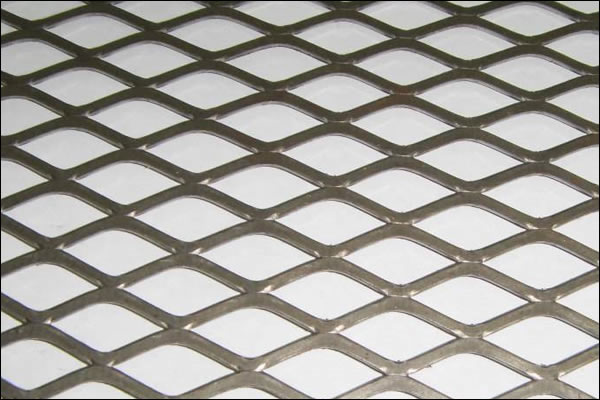

Flattened expanded metal is regular expanded metal which has been cold rolled, leaving a smooth, flat surface. The product is available in carbon steel, stainless steel, galvanized and aluminum alloy. If a finished edge is required, U-Edging is available in aluminum, carbon steel and stainless.
Common Applications for Flattened Expanded Metal:
• Guards
• Fencing
• Panels
• Grating
• Stairs
• Grills
• Screens
• And So Many More

Features of Expanded Metal:
• Economical
• Durable
• Extremely Versatile
• Easy To Install
• Low Resistance To Wind Loads
• Easily Cut To Fit
• Many Material Options

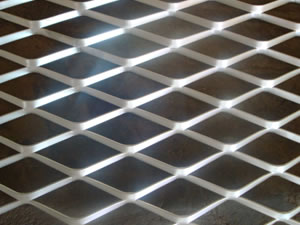

Stainless steel flattened expanded mesh.
dimensions as follows:
Pattern type: 0798S
Grade: 304 or 316 (preferred)
Thickness: 0.9mm
LWD: 19.08
SWD: 7.26
Strand Width: 1.710mm

flattened expanded mesh titanium and stainless steel. the material should be 0.001" (~0.025mm) thick.
following configuration:
thickness: 0.001"
long diagonal: 0.020"
short diagonal: 0.012"
strand width: 0.008"

3/16 X .050 flattened expanded aluminum in a 3003 series

Stainless Steel Expanded Sheets, Flattened to smooth surface finish and re-squared cut to the following dimensions and specs:
Diamond size 1/16" (SWD) x 1/8" (LWD), and strand width of 1/8"
Length (SWD) 36.625" tolerance +/- 1/16"
Width (LWD) 18.025" tolerance +/- 1/16"
Strand thickness (after flattening) 0.030"- 0.035"

flattened expanded metal sheets:
Un- galvanized ( black ) Flattened
Size of sheet 1.25 mtr x 2.5 mtr
3.0 mm thickness
4.0 mm strand width
27.5 short way mesh x 50.8 long way mesh
( Hole: 19 mm x 41 mm )

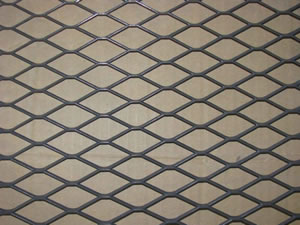

flattened expanded aluminium sheet with the below specifications:
Material = Aluminium
LWO = approx. 16mm
SWO = approx. 8mm
Strand thickness = 2mm
Pre-cut dimension = 4,950mm x 240mm

HDG Expanded Mesh (Flatten after punching)
Size: 1220 x 2440mm
25mm x 75mm x 2.5mm x 2.5mm

expanded mesh 1/8 thick and flattened by 6 inches square

Diamond Hole Expanded Mesh, Flat Mesh

Flattened Expanded Metal, Diamond Expanded Metal, Special Expanded Metal
