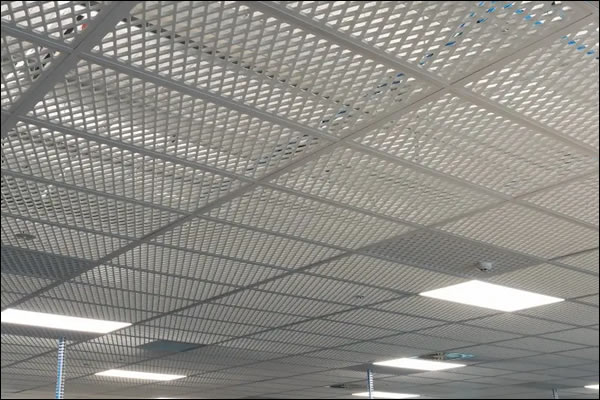

Expanded metal mesh ceilings for architectural and modern building designs, interior and exterior.

Expanded metal ceilings makes versatility choice for both residential and commercial projects. Metal mesh ceiling offer enhanced durability in addition to added flexibility. Expanded mesh ceilings are improves the smoke extraction requirements.

It's incorporated into fixed building ceiling structures and becoming widely popular amongst designers due to their raw industrial appearance.

Metal mesh ceiling sheet is used in architectural ceiling projects where easy maintenance and assembly is required for certain facilities, such as: air system, tele cable, insulation filtetr system, lighting etc.

We supply electro and hot dipped galvanized for carbon steel expanded metal mesh in a larger pattern size suspended ceiling feature for a retail and the powder coated or spray painted for aluminum and steel to be painted black, gray, silver and other metallic colors and suspended. custom the size as big as 12” in length of the triangle.

Hole Shape Applied:
Heavy Hexagonal Expanded Sheet
Diamond Shaped Expanded Sheet
Special Expanding

Ceiling Expanded Metal

Expanded metal mesh have available for decorative ceilings. Specifically it's light and thin and potentially in a roll or sheet. Roll of long length and 3m width, an ideal length per roll would be 5m or longer.

Expanded Ceiling Panels Must Have Minimum 70% Open Area

Size: 47.25" x 23.75". Ceiling panels can be expanded or perforated metal. (If perforated metal, we have a way to treat the edges so they are not sharp. The panels will be places in a ceiling and may be moved periodically.) Material must be steel metal. Finish should be metal color (stainless steel, powdered coated, mill finish, etc.) We supply weight of the panels.

Expanded Metal Ceilings

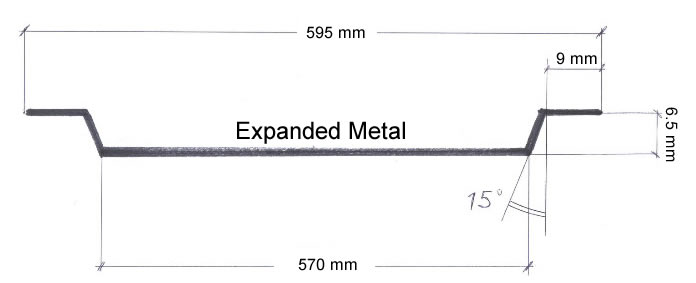

Drawing expanded metal ceiling size 595mm. X 595mm.
Metal - galvanized steel, thickness of the steel plate 0,8mm. Before processing.

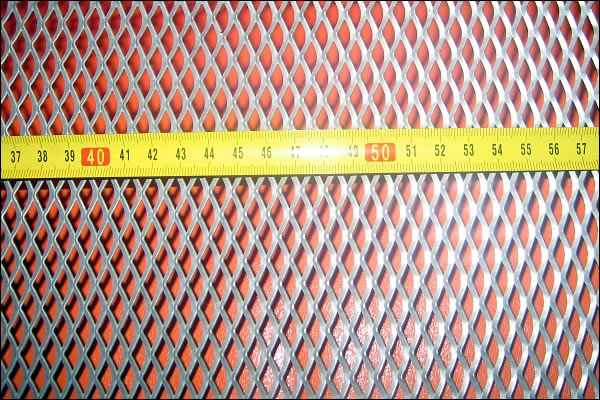

Mesh in the form of a rhombus.
The size of the grid LWM 16mm.х SWM 8mm., strand width 2,2mm.

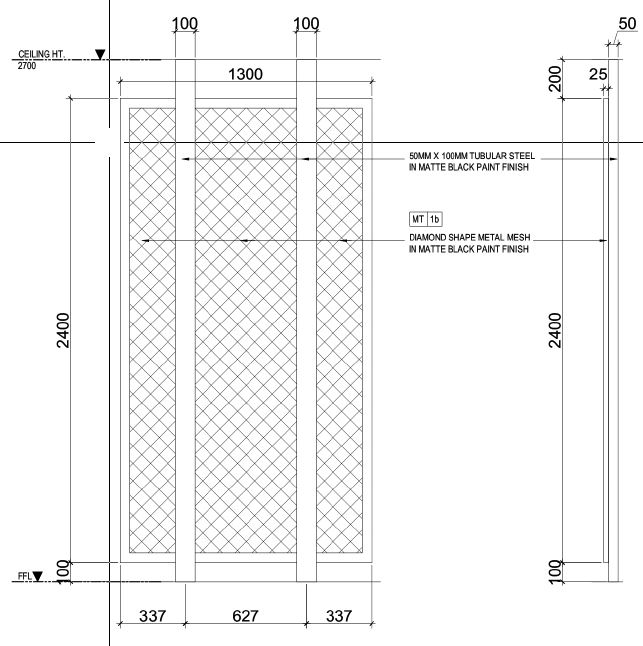

Suspended Ceiling Diamond Hole Metal Mesh.

Please see below picture for your reference.
